Basic Info.
Model NO.
TT
Certification
ISO 9001:2000, ISO 9001:2008, CCC
Usage
Cargo, Passenger, Cargo And Passenger
Power
Gasoline
Body Type
Closed
Displacement
201-250CC
Wheel Distance
>1110mm
Transport Package
SKD CKD
Specification
3.7*1.4*2.22m
Trademark
TENGTIAN. PENGTIAN. OEM
Origin
China
Production Capacity
600000
Product Description

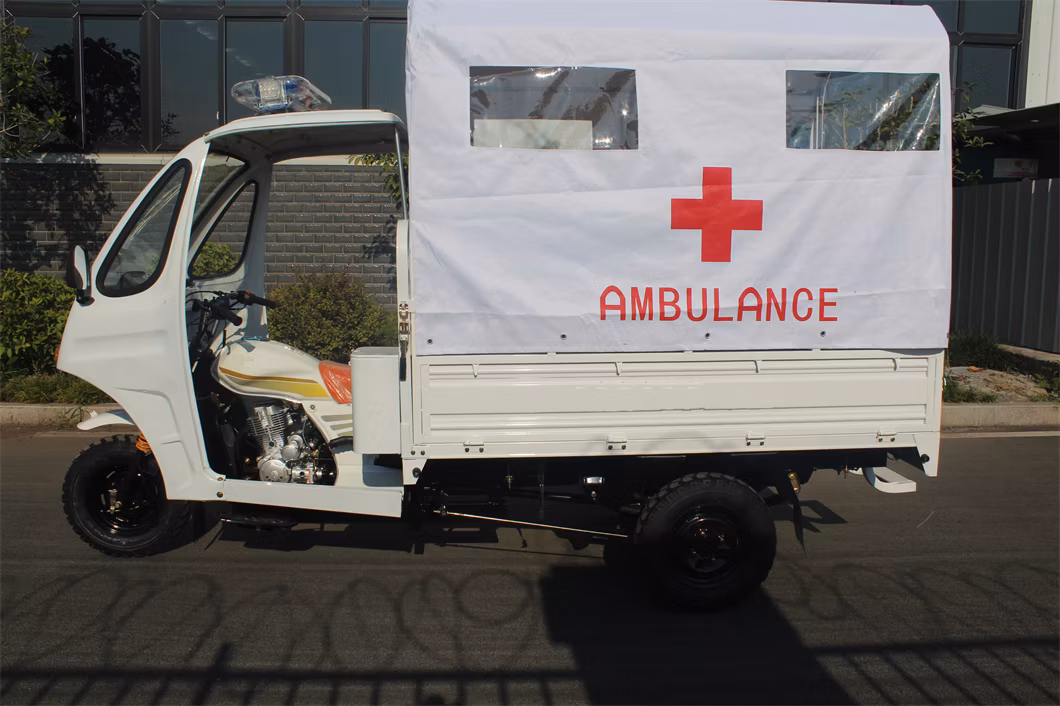

| BODY | Application | Ambulance |
| Design Max Speed | ≥60 km/h | |
| Loading Capacity | 1000kg | |
| Gross Weight | 450kg | |
| Dimension(L*W*H) | 2900x1400x2200mm | |
| Cargo size(L*W*H) | 2000*1400 mm | |
| Battery | 9A | |
| Front Wheel Brake | Drum brake | |
| CHASIS ( FRAME) | Keel (mm) | 40*80 strong chasis |
| Track | 1200mm | |
| Wheel Base | 2500 mm | |
| Ground Clearance | 160mm | |
| Tire | 4.5-12 | |
| SUSPENSION & SHOCK | Brake Mode | Front&Back wheels, Drum |
| Brake Operation Mode(F/R) | Drum brake | |
| Front suspension | Double Front shock absorber | |
| Rear suspension | Leaf spring 7(4+3) pieces | |
| Transmission Type | Shaft Drive | |
| Rear axle | Car Strength Driving rear axle,King Garrett,Five tires | |
| ENGINE | Engine Type | Single cylinder,4-stroke,camshaft downward, 175cc aircooling(optional) |
| Cool Type | airrcooled | |
| Bore Stroke | 62×58mm | |
| Fuel Tank Capacity | 12 3(optional) | |
| Fuel Type | Gasoline | |
| Compression Ratio | 9.7:1 | |
| Min.Fuel Consumption | <=354g kw.h | |
| Rated Power&Rotating Speed | 9.0kw/8500r/min | |
| Max.Torgue/Rotating Speed | 12N.m/6500r/min | |
| Lowest No-Load Speed Stability | 1500±150rpm | |
| Clutch Method | Manual-Hand | |
| Power | 9.0 kw | |
| Ignition System | C.D.I. | |
| Apply to | Motor tricycle | |
| Starter | Kick/Electric | |
| Transmission | 5 Forward &1 Reserse Gears | |
| PACKING | Loading Capacity (CKD) | 36 Units in 40"HQ |
| Delivery Time (from loading port) | 20-25 Days after receiving advance payment |
Q: Are you a manufacturer or a trader?
A: We are a manufacturer, focusing on the R&D, production and sales of tricycles.
Q: What is your MOQ?
A: Our MOQ will be one 40HQ container. Depending on the model, the number of tricycles will range from 20 to 50.
Q: Can I buy a sample tricycle first?
A: Sorry, we cannot provide one or several sample tricycles.
Q: Can you customize tricycles?
A: Yes. We have a strong R&D team and can provide in-depth customization according to the actual needs of customers.
