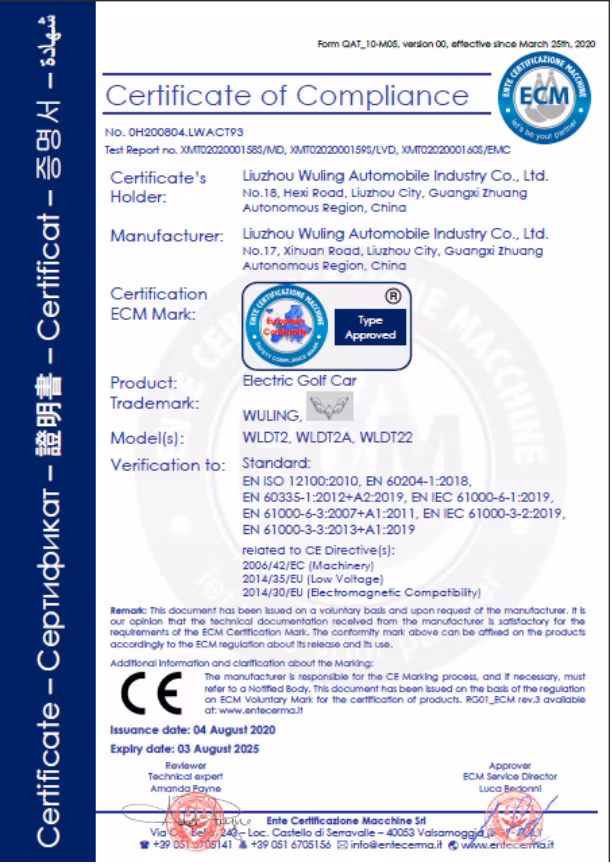

- Certifications
- Packaging & Shipping
- Our Advantages
- Company Profile
Basic Info.
Model NO.
WLDT2
Power
3kw
Power Fuel
Electric
Maximum Speed
20-30 km/h
Gradeability
20-30%
Suitable for
Golf Course
Certification
CE
Voltage of Battery
48V
Color
White
Controller
American Curtis(Inpower for Option)
Motor
Three-Phase AC Asynchronous
Battery Capacity
48V145ah
Charging Time
8-10h
Frame
Aluminium Alloy
Tyre
18X8.5-8
Transport Package
Container(1*40hq Can Load 27 Units)
Specification
2306*1200*1760
Trademark
Wuling
Origin
Liuzhou
HS Code
87031019
Product Description
Products coverage: 2 seats, 2+2 seats; 4 seats and 4+2 seats golf cars;
Can be widely used for: golf courses, scenic spots, hotels, communities etc.
| Model | Basic | Standard | Luxury | |
| Motor Controller | Brand | Enpower | Curtis | Curtis |
| Rated Voltage (V) | 48 | |||
| Electric Motor | Type | THREE-PHASE AC asynchronous motor | ||
| Rated Power (Kw) | 3 | |||
| Rated Torque (N.m) | 9.6 | |||
| Max. Torque (N.m) | 80 | |||
| Charger | Type | On-board Charger | Off-vehicle Charger | |
| Charging Time(h) | 8-10 | 8-10 | ||
| Battery | Brand | Leoch | Trojan | |
| Capacity | 48V145Ah | 48V145Ah | ||
| Dimension | Dimension(L*W*H)(mm) | 2306*1200*1760 | ||
| Wheelbase (mm) | 1660 | |||
| Tread(F/R)(mm) | 875/980 | |||
| Mass parameters | Curb weight (kg) | 435 | ||
| Maximum total mass (kg) | 710 | |||
| Passenger capacity | 2, 2+2 | |||
| Performance | Min. turning diameter (m) | 5.3 | ||
| Max. speed (full load) (km/h) | 24 | |||
| Max. climb %(°) | 30(17.2) | |||
| Cruising range(km) | 90-110 | |||
| Suspension frame | Front suspension | Horizontal leaf spring independent suspension | ||
| Rear suspension | Integral bridge type non-independent suspension | |||
| Wheel and Tires | Pneumatic rubber tire | 18x8.5-8 | 205/50-10 | |
| Wheel | Steel Wheel with cover | Aluminum Alloy Wheel | ||
| Optional Device |
| |||
| Note: S-standard equipped, O-optional. Above info for reference, Wuling has final explanation right. | ||||
Roof diassembled
Protection
Steering and accessories
AajjAccessosa
- High-strength aluminum alloy body frame. Compared with the iron material based on the same configuration,the cruising range is increased by 25%.
- The chassis standard parts are all treated with Dacromet to minimize the risk of rust.
- The rear axle is developed according to the standard of passenger car, with high bearing capacity, reliable performance and long service life.
Wuling motors, a professional Golf Cart manufacturer in China.
Assembly Line
Test Line
